FastenMaster 9-1/4 In. W Steel Lateral Tension System

The International Residential Code (IRC) requires that decks be designed to withstand both vertical and lateral loads. This 2015 code allows for tension ties to be attached to the deck joist then fastened directly to an interior sill plate, wall plate, or stud – all from the outside. These lateral connections must be designed to resist 750 pounds in tension and installed in four locations along the length of the ledger: one within 2′ of each end of the ledger with two more evenly spaced between. The FastenMaster Lateral Tension System (LTS) is a complete system designed to transfer the lateral forces on an exterior deck when attached to the wood frame of a structure.

The lateral tension system is approved for the five most common installation conditions

Code compliant for the lateral tension system

Repaces the use of a threaded rod

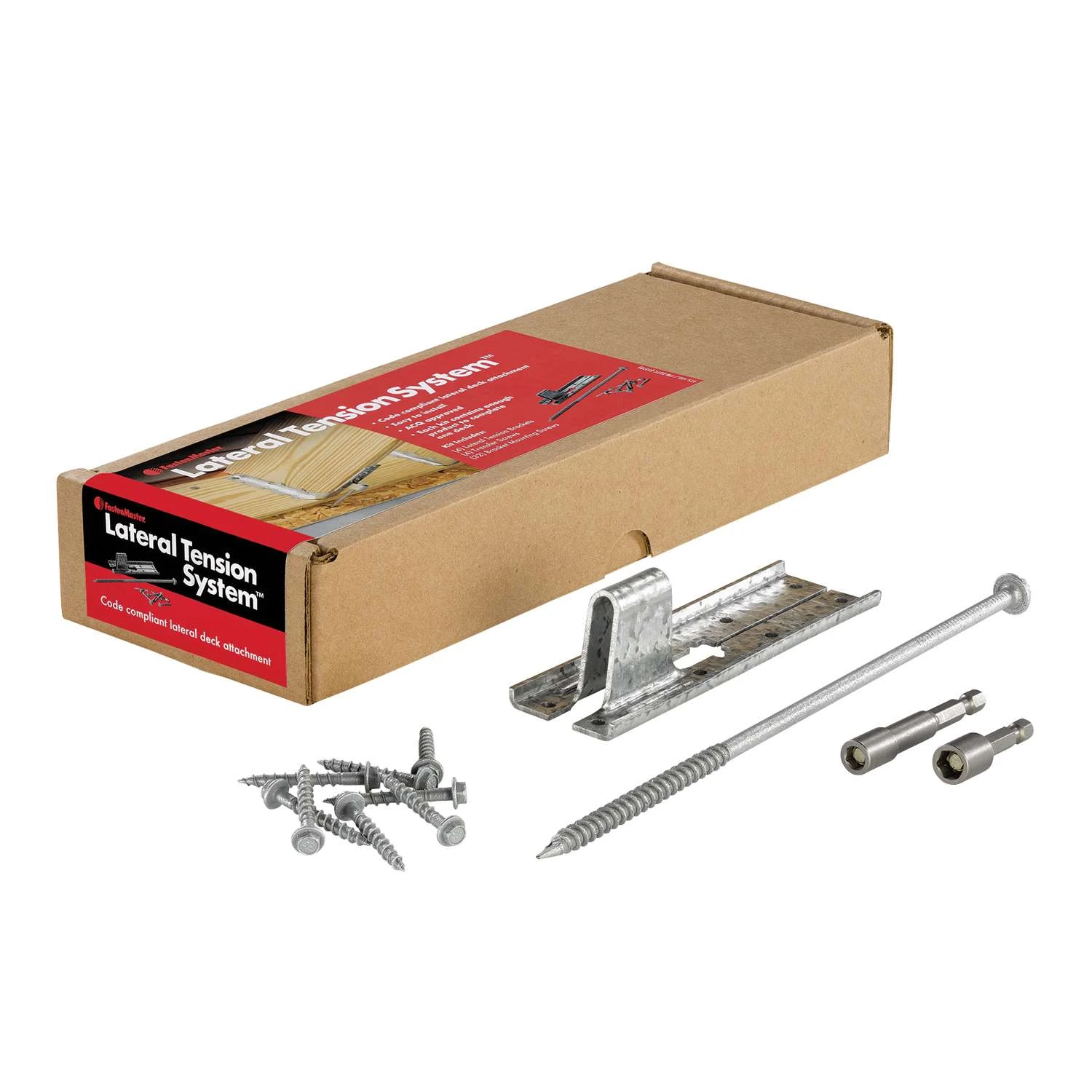

The FastenMaster LTS, is one complete kit to make all four of these code conforming connections

Each LTS bracket attaches an individual deck joist to a structural framing member of the house

With the LTS, you can install the fastener first and then add the plate

The long fastener allows you to achieve the 3″ of threading within the sill plate without having to access the interior of the house
